Mechanical Fail-Safe Door Strike for Glass Doors 800kg Holding Force

جزئیات محصول:

محل منبع: چین
نام تجاری: JUNSON
گواهی: CE/ROHS/FCC
شماره مدل: JS-135F

پرداخت:

مقدار حداقل تعداد سفارش: 10 عدد
قیمت: قابل مذاکره
جزئیات بسته بندی: بسته بندی شده در کارتن
زمان تحویل: 2-7 روز کاری پس از دریافت پرداخت خود
شرایط پرداخت: T/T ، PayPal یا Western Union از قبل
قابلیت ارائه: 30،000 قطعه در ماه
بهترین قیمت مخاطب

اطلاعات تکمیلی

مدل: JS-135F نام محصول: ضربه الکتریکی
نشان: ایمن باشید NC-نمونه نوع: قابل تنظیم
منبع تغذیه: 12 ولت سیگنال خارج کنید: n/a
ساختار ضربتی: ریخته گری روی نیرو: 800 کیلوگرم

توضیحات محصول

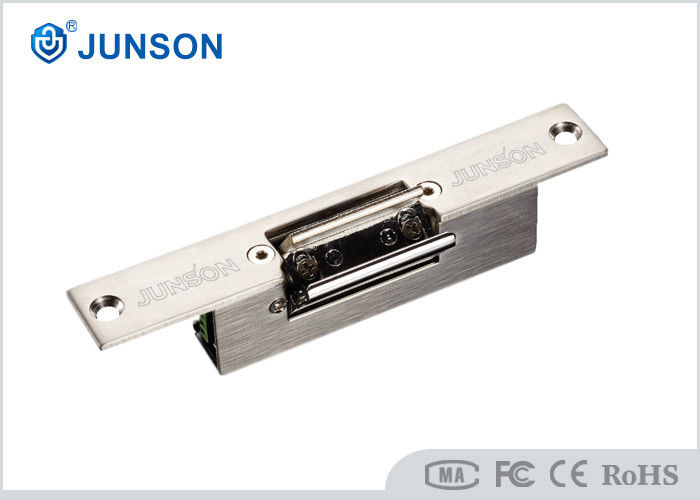

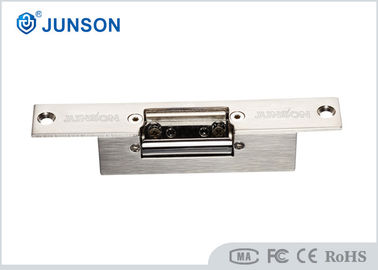

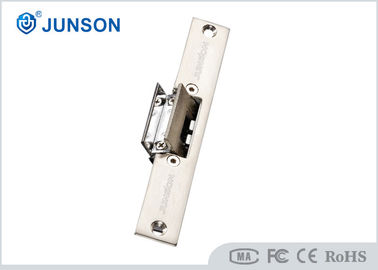

Mechanical Fail-Safe Door Strike for Glass Door with 800kg Holding Force



JS-135F lock is designed for narrow frame doors, featuring an adjustable spring bolt for continuous open mode. A versatile, durable solution from our full product range.





Parameters:


Lock Dimension

160Lx25Wx31H(mm)

Weight 0.4kg

Standard Packing

60pcs

Cartons size 54L * 20W * 30.5H (cm)

Holding Strength

800kg

Style

Fail Safe

Voltage

12V DC

Current

200mA

Available lock

Rim lock,  mechanical lock

Suitable for

Narrow wooden door, narrow metal door

Special design

Adjust lock tongue to NO type

Surface Temp

  Within + 20℃

Operating Temp

-10℃ - 55℃

Suitable Humidity

0-90% (non-condensing)

Finishing for lock

Coating nickel

Strike Structure

Stainless Steel





Features:

  • High Holding Force: Supports up to 800kg.

  • Durable Materials: Constructed with aluminum housing and stainless steel bolt.

  • Reliable Performance: Tested to over 1,000,000 cycles for long-term use.

  • Certified Quality: CE certified by the European Union and MA certified by China Public Security Office.

Mechanical Fail-Safe Door Strike for Glass Doors 800kg Holding Force 0





FAQ:



Q: Whats your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.



Q: Do you provide sample ? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.



Q: How can I get a quote?

A:Contact us with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.



Q: What's the trade term and payment term?

A:Amount less than $1000, 100% paid before production, more than $1000 can be negotiated!



Q: How long is your delivery time?

A: The general delivery time is 30-45 days after receiving your order confirmation. Another, if we have the goods in stock, it will only take 1-2 days.





Quality Control



We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.

1.All raw material checked once it arrive our factory.

2.All pieces and logo and all details checked during production.

3.All packing details checked during production.

4.All production quality and packing checked on final inspection after finished.
