No Pole Sturdy Small New Designed Electric Cabinet Lock
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Junson |
| گواهی: | CE/FCC |
| شماره مدل: | JS-3051S |
پرداخت:
| مقدار حداقل تعداد سفارش: | 5 عدد |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | بسته بندی شده در کارتن |
| زمان تحویل: | 2-7 روز کاری پس از دریافت پرداخت خود |
| شرایط پرداخت: | T/T ، PayPal یا Western Union از قبل |
| قابلیت ارائه: | 5000 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| ابعاد قفل: | 73L*56W*13H (میلی متر) | طول هوکر: | قلاب اختیاری 26 میلی متر، 29 میلی متر |
|---|---|---|---|
| مواد: | محفظه فولادی / کویل های مسی ریز | نوع کار: | هنگام خاموش شدن برق، ایمن از کار افتاد / قفل شد |
| ولتاژ: | 12 ولت / 24 ولت DC (سفارشی) | جریان کار: | 2A/1A |
| وزن: | 0.17 کیلوگرم / عدد | بسته بندی: | 100 قطعه/کارتن |
| برجسته کردن: | sturdy electric cabinet lock,small electric cabinet lock,no pole electric cabinet lock,small electric cabinet lock,no pole electric cabinet lock |
||
توضیحات محصول

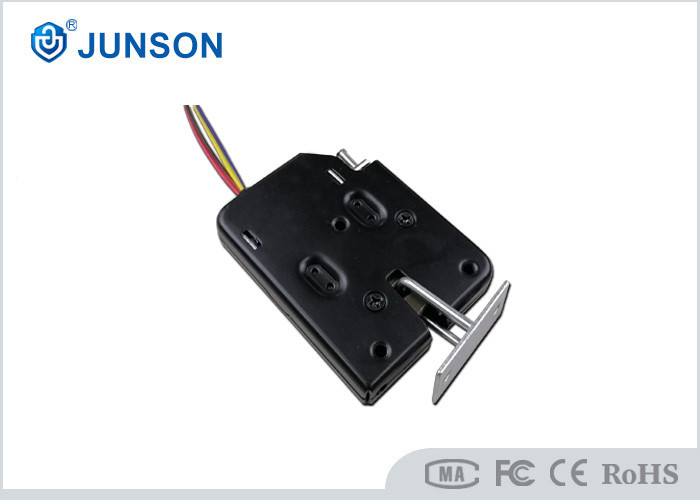

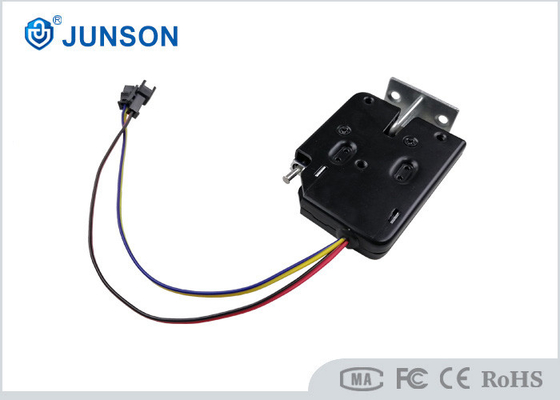

No Pole Sturdy Small New Designed Electric Cabinet Lock
Mini No Pole Electric Cabinet Lock
Model: JS-3051S
This upgraded electronic lock delivers safe, reliable protection for cabinets, drawers and any storage unit. Its reinforced latch generates greater locking strength, reliably resisting knocks or external pressure to stop the lock from popping open unintentionally.
Parameter List:
| Lock Dimension | 73L*56W*13H (mm) |
| Hooker length | 26mm, 29mm optional hooker |
| Working Type | Fail secure / locked when power off |
| Materials: | Steel housing / fine copper coils |
| Voltage | 12V / 24V DC (customized ) |
| Working Current: | 2A / 1A |
| Open time | Within 1S |
| Continue power on | ≦10S |
|
Signal out |
NO/COM |
| Available | All kinds of Cabinet |
| Weight: | 0.17kg/pcs |
| Packing: | 100pcs/ carton |
| Carton size: | 35L*35W*15H (cm) |
Main Feature:
1. High-strength steel, and fine copper coils, durable
2. Small Volume, light weight, Less power consumption, Easy installation
3. Available for any kind of cabinet, file box.
4. Continues electrify no longer than 10S, to prevent the burn the coil
5. With small with connector, and 20mm wires, easy to connect to the control board.
6. Workable with access control, remote control or special access control power.
7. Metal housing, easy to install in the cabinet door.
8. With Emergency open switch hidden, can open by hand in emergency condition
9. Safety, bolt’s holding force at 150kg
10. Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
Lock Dimension:
Hooks model we can options:
FAQ:
