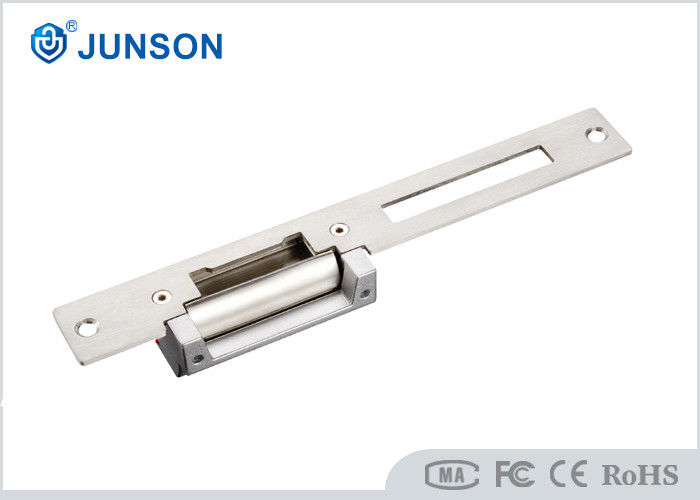

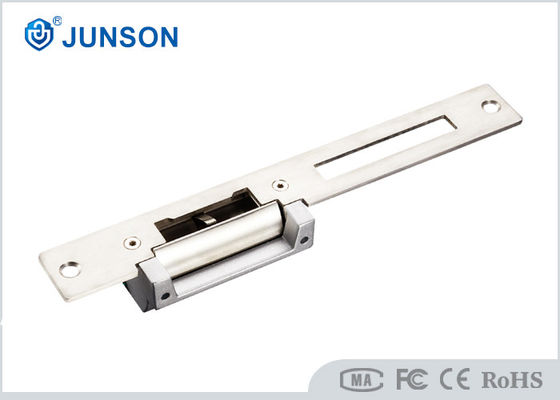

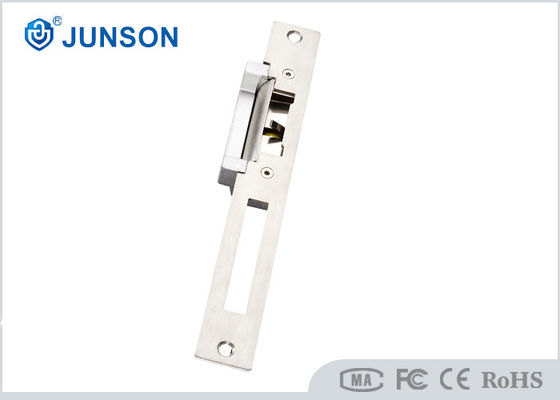

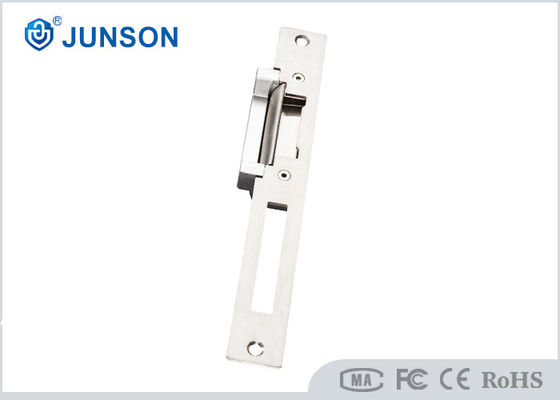

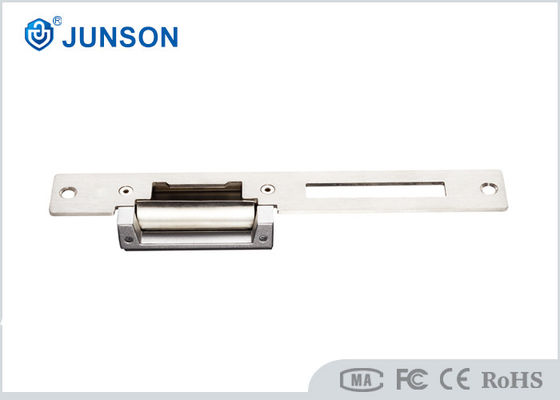

12V DC European Fail-Secure Electric Strike Lock – Ideal for Wooden Doors

Product Specifications

• Lock Size: 250 × 32 × 33 mm (L × W × H)

• Weight: 0.4 kg

• Time Delay: No

• Signal Output: No

• Working Current: 200 mA

• Opening Mode: 90° Swing Door

• Applicable Door Types: Wooden, Glass, Metal, Fireproof Doors

• Input Voltage: DC 12V ±10%

• Surface Temperature: Within +20°C

• Security Type: Fail-Secure (Locked when energized / Open when energized)

• Contact Type: Dry Contact

• Housing Material: Stainless Steel

• Certification: CE / FCC / RoHS

Product Description

The Electric Strike Lock operates similarly to an electric bolt lock and is designed to work alongside a mechanical lock, typically installed on standard wooden doors. The strike’s latch engages with the door bolt to securely lock or unlock the door.

Engineered for embedded installation, it provides a sleek and elegant appearance. The electromagnetic component is crafted from high-quality magnetic materials and processed using advanced technology to eliminate residual magnetism, ensuring long-term stable performance.

This electric strike supports doors that open up to 90 degrees and features a durable stainless-steel structure capable of withstanding impact forces up to 800kg, offering both strength and reliability.

Product Features

• High Strength: Withstands impact forces up to 800kg for maximum durability and security.

• Adjustable Lock Bolt: Special design allows flexible bolt distance adjustment to fit various door frames.

• Easy Installation: Suitable for metal door frames with pre-cut holes for quick and straightforward setup.

• Long Service Life: Tested over 500,000 cycles to ensure stable and reliable operation.

• Certified Quality: Complies with CE, FCC, and RoHS standards, guaranteeing safety and performance.
